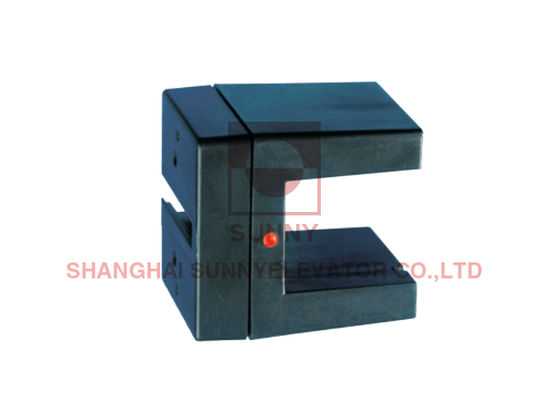

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

Сертификация
КИТАЙ SHANGHAI SUNNY ELEVATOR CO.,LTD Сертификаты
КИТАЙ SHANGHAI SUNNY ELEVATOR CO.,LTD Сертификаты
С     прибытия     год     новый,   я   желаю     компании     расширит   свой масштаб  ,   начинает   свое дело  ,   начинает   свое   дела   и   для того чтобы расширить   свои ресурсы     финансовые.

—— Melya

Настаивающ на управлении качества продукции, строя долгосрочный эффективный механизм качества. Удовольствие объединить с вами.

—— Yuilly

Оставьте нам сообщение

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

Большие изображения :  CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts

Подробная информация о продукте:
Место происхождения: КИТАЙ
Фирменное наименование: SUNNY
Сертификация: CE,ISO9001
Номер модели: Et126ns2p
Оплата и доставка Условия:
Количество мин заказа: 10 шт
Цена: $7~10
Упаковывая детали: Стандартный экспортный пакет
Время доставки: 7 ~ 15 дней
Условия оплаты: L/C, T/T, Western Union
Поставка способности: месяц 1000 ПК
Подробное описание продукта
Имя: Датчик слота для выравнивания лифта Применимый: Оборудование лифта
Вид деятельности: производитель Транспорт: Морской транспорт
Название продукта: Лифт Напряжение: 10...30VDC
Модель: Датчик слота для выравнивания лифта Продукт: Датчик слота для выравнивания лифта
Выход: PNP или NPN Пределы температуры: -20 ~+70 ° ℃

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts



Feature Description

High-speed response type

With a repeatability accuracy of up to 0.5mm, the positioning is more precise

Infrared light above 10000% is on standby, dust-proof, smoke-proof and steam-proof

It is equipped with built-in output short-circuit protection, surge protection and overload protection circuits

Multi-functional output (NPN/PNP/NO/NC

Protection grade IP65(IEC)



Model ET126NS2P
Power supply 10...30VDC
Riple <10%
Detected object Φ2.0 Above metal objects
Sensitivity adjustment fixed
Emission Infrared(880nm)
Output PNP or NPN
Max. Load Current ≤200mA
No Load Current 15mA or Less
Voltage Drop(Sensor On) <2.5V
Response Time ≤1ms
Short Circuit Protection Yes
Electric Protections Yes
Temperature Limits -20 ~+70°℃
Storage temperature and humidity -40 ~ +80℃ 95% RH
Light Immunity >100,000Lux
Protection Degree En60529 IP65
EMC EN 12015, EN 12016
Certification CE
Connection Type PVC Cable









CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 0



CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 1



CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 2

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.

Контактная информация
SHANGHAI SUNNY ELEVATOR CO.,LTD

Контактное лицо: Wei CHEN

Телефон: +86-13661864321

Оставьте вашу заявку (0 / 3000)
